Understanding the V5 Brain Ports

The V5 Brain has three types of ports. Knowing which port handles which device — and why port assignment matters — prevents hours of debugging confusion.

📡

Smart Ports

Ports 1–21 — motors & sensors

⚡

Power Ports

3-wire + Radio + Battery

📡

USB / Serial

Download, tether, SD card

🚫

#1 Rule

Label every cable with port #

      V5 Brain · Smart Ports 1–21 · Three-Wire A–H · USB · Battery · Radio

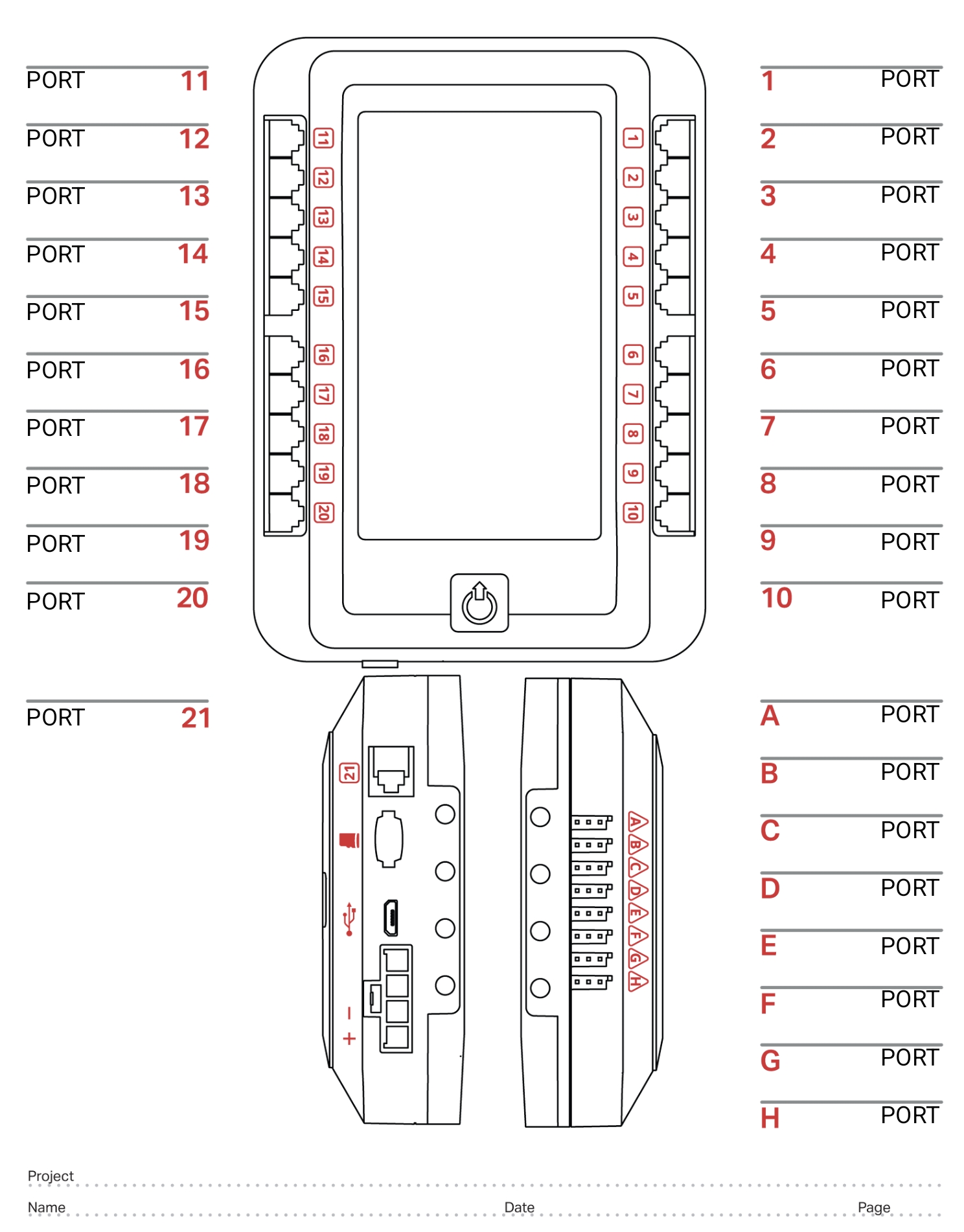

Brain Port Layout

The V5 Brain has 21 smart ports (labeled 1–21), port 21 is the dedicated radio port and should not be used for anything else, leaving 20 usable motor/sensor ports. It also has 8 three-wire analog ports (labeled A–H) for legacy sensors.

Smart Ports (1–21)

1smart

2smart

3smart

4smart

5smart

6smart

7smart

8smart

9smart

10smart

11smart

12smart

13smart

14smart

15smart

16smart

17smart

18smart

19smart

20smart

3-Wire Analog Ports (A–H)

■ Smart ports: V5 motors, IMU, rotation sensors, distance sensors, GPS sensor, optical sensors, vision sensor
■ 3-wire ports: bumper switches, limit switches, ADI expander, legacy sensors
■ Port 21 (not shown): dedicated radio — never plug anything else here

Strategic Port Assignment

Which motor goes in which port matters more than most teams realize. Port assignment affects:

PTC protection grouping — the Brain’s internal circuitry groups ports in pairs. Overloading one pair can affect the other.
Diagnostic clarity — a labeled port map makes every code error and hardware fault faster to find.
Rebuild speed — consistent port assignment means anyone on the team can rewire the robot correctly.

Assign port numbers logically: drive motors first (1–6), then mechanisms (7–12), then sensors (13–21). Document this in the notebook.

Drive motors on ports 1–10 or 11–20, not mixed. Some teams group left drive on ports 1–5 and right drive on ports 6–10 so the physical cable runs are shorter and organized.
IMU on a port far from motors if possible. Heavy motor current draw can create minor electrical noise. Ports 10, 11, or 20 are often used for sensors.
Document every assignment before coding. The Robot Pre-Check port log is the right tool for this.
Leave 1–2 ports empty as spares. If a port dies at competition, you can rewire to the spare and update the port number in one line of code.

💡

Label your cables by port number. Use masking tape and a marker, or cable labels, at both ends of every motor cable. When a cable needs replacement at competition, you should be able to identify which cable it is in under 10 seconds without consulting any documentation.

1 / 4

// Section 02

Cable Management That Survives Competition

A robot with good cable management is faster to repair, less likely to fail mid-match, and easier to inspect. These practices take 30 extra minutes during build and save hours of debugging.


  Cable management diagram

  robot chassis

  V5 Brain

  motor

  motor

  service loop

  zip tie anchor

  cable route
  service loops prevent cable tension on moving joints — anchor every 3–4 inches

✅ Do This

✅Zip-tie cables to the frame at intervals of 2–3 inches through metal holes or zip-tie mounts

✅Use the appropriate cable length — measure with the robot at full extension before cutting

✅Add a service loop (small slack coil) at every moving joint — arms, lifts, intakes that rotate

✅Route cables along the inside of C-channels where they are protected from snags

✅Click every connector until you hear the latch engage, then tug gently to confirm

✅Keep the Brain screen and button accessible — you need to reach these at competition

❌ Never Do This

❌Leave cables loose and draped across the inside of the robot — they snag on mechanisms

❌Pull cables taut from motor to Brain with no slack — they will disconnect under stress

❌Route cables across moving joints without a service loop — cables fatigue and break

❌Use excess cable length stuffed loosely into a corner — it will catch on something

❌Crimp custom cable lengths unless you have proper VEX crimping tools and practice

❌Zip-tie cables so tightly they crush the insulation — this damages the cable over time

The Service Loop — Critical for Moving Mechanisms

Any mechanism that rotates, pivots, or extends requires a service loop — a deliberate slack section of cable.

Without a service loop, repeated movement will pull the connector out or fatigue the cable until it breaks mid-match.
Service loops should be 2–3 inches of extra cable formed into a loose arc, secured with a zip tie anchor point.
Check service loops at every practice — they are the most common cable failure point on competition robots.

Arms and lifts: the cable from the motor to the Brain must have enough slack that at full arm extension, the cable is still slack — not taut. Test by moving the arm to full extension and watching the cable.
Intakes: if the intake flips out or folds, the cable to the intake motor needs slack to accommodate that motion.
Rule of thumb: a service loop should have 2–3 inches of extra cable coiled at the joint, secured with a loose zip tie that still allows the coil to move.

⚠️

The most common match failure on a moving mechanism: the cable was fine during testing but pulls tight under the stress of a match and disconnects. Always test cables at the full range of motion of every mechanism before competition day — not just at rest position.

Cable Length Selection

Cable length selection matters for reliability and cleanliness:

VEX sells Smart cables in 6", 8", 12", 24", and 36" lengths
Always use the shortest cable that reaches with a service loop — excess cable creates snag points
If you cannot find the right length, coil and secure excess cable with a zip tie — never leave it loose

2 / 4

// Section 03

ESD — The Silent Port Killer

Electrostatic Discharge is one of the most common and most surprising causes of permanent V5 Brain damage. Most teams never know it happened until a port stops working mid-season.

⚡

ESD can permanently disable a V5 Brain smart port. The damage is irreversible — there is no software fix, no restart that recovers it. A port killed by ESD is dead permanently. Replacement requires sending the Brain to VEX for repair or buying a new Brain. Prevention costs nothing. Recovery is expensive.

What ESD Is and How It Happens on a VRC Robot

Electrostatic Discharge is the sudden release of built-up static electricity through an electrical path. You have experienced this as a small shock when touching a doorknob after walking across carpet. On a VRC field:

Robot drives on carpet — wheels rolling on the VRC carpet surface build up static charge on the robot’s metal frame.
Static accumulates — the charge builds until it finds a path to discharge.
Discharge path goes through the motor — the motor’s metal casing is connected to the robot frame. The discharge travels through the motor cable.
The V5 Brain smart port takes the hit — the RS-485 communication chip in the port absorbs the discharge. At sufficient voltage, it fails permanently.

Warning Signs of ESD Damage

A motor or sensor suddenly shows as disconnected after a match, even though the cable is seated correctly
A port works intermittently — the device connects and disconnects without any physical change
Flashing red LED on the port indicator on the Brain
The device works on a different port but not on the port it has always been in

ℹ️

ESD damage is more common on competition fields than at home practice. Competition venues often have low humidity (which increases static buildup), many robots driving on the same field surface, and longer continuous run times. Teams that never see ESD issues at home sometimes lose ports at their first major event.

Why Some Ports Are More Vulnerable

Drive motors are the highest ESD risk on the robot because they have the most physical contact with the field surface.

Route drive motor cables away from the robot’s metal outer frame
Use ferrite beads on drive motor Smart cables near competition season
Inspect drive motor cables after any field collision — the cable is most vulnerable there

3 / 4

// Section 04

ESD Prevention & Recovery

Prevention costs almost nothing. Recovery from a dead port costs time, money, and potentially a competition result.

Common Wiring Problems — Quick Fix

Problem	Likely Cause	Quick Fix
Motor not responding in code	Wrong port number or unplugged cable	Verify port in Brain Devices menu; reseat Smart cable
Motor runs backwards in code	Motor physically mounted reversed	Add `-` before port number in chassis constructor
Cable pulls out mid-match	No service loop on moving mechanism	Add 2–3 in. slack loop; anchor with zip tie
Motor errors after field contact	ESD spike through ungrounded metal	Add ferrite beads; use non-conductive standoffs near motor cables
Intermittent sensor readings	Loose 3-wire connector or ESD	Reseat connector; route sensor cable away from motor cables
Brain resets during match	Battery connector loose or voltage sag	Check battery latch; charge battery; check for shorts in wiring

Pre-Match Wiring Checklist

⚡ Before You Queue

All Smart cables clicked firmly into Brain ports — no wiggle

Tug each cable gently; it should resist

Service loops intact on all moving mechanisms

Arm, intake, lift — any joint with cable routing

No cables touching wheels, drive shafts, or field perimeter

Common cause of mid-match failures

Battery connector fully seated and latched

Press until you hear the click

No exposed wire or frayed insulation

Replace any damaged cable before the match

Port assignment matches code

Check Brain Devices menu — verify each motor responds

Prevention Methods — Use All of These

1. Anti-Static Spray

Anti-static spray applied to the robot’s metal frame reduces static charge buildup.

Apply to exterior metal surfaces before each competition — not to motors or cables
Common options: Techspray 1701 or similar electronics-safe anti-static spray
Effect lasts 4–8 hours — reapply between qualification and elimination rounds at long events

2. Keep Cables Away From Metal Shavings

Metal shavings from cutting and drilling VEX metal are conductive. They can fall into smart port connectors and create a short circuit path that accelerates ESD damage. Tips:

Cover the Brain with tape or a cloth when drilling or cutting metal near it
Clean metal shavings off the robot thoroughly after any build work
Use pre-crimped VEX cables rather than custom-crimped cables — custom crimp quality varies and a poor crimp creates a vulnerable connection

3. Use Rubber Wheel Inserts

Some teams add rubber or foam between the wheel hub and the drive shaft to reduce vibration transfer and ESD.

This is an advanced technique — useful at high-stakes competitions where ESD has been a recurring issue
Use sparingly: insulating materials between drive components can affect traction and handling feel
Test on a practice robot before implementing on the competition robot

4. Have a Spare Port Plan

Even with perfect prevention, ESD can still strike. The best recovery is having a plan before it happens:

Leave 1–2 smart ports unused on the Brain as designated spare ports
Document your port assignments in the port log so any team member can rewire to a spare port in under 5 minutes
Know which one line of code to change to update the port number — it is a single number in robot-config.cpp

✅

Competition day ESD recovery drill: practice once with your team — intentionally pretend port 3 has died and time how long it takes to move the motor to port 19, update the code, rebuild, and upload. Teams that have done this drill can recover in 3–5 minutes. Teams that have not may take 20+ minutes in a stressful competition environment.

If a Port Dies at Competition

Confirm it is actually dead — swap to a different cable first. A bad cable mimics a dead port.
Move the motor to a spare port — disconnect from the dead port, connect to your pre-designated spare.
Update the port number in robot-config.cpp — one number change in the motor constructor.
Build and upload — pros build-upload from the terminal. Under 90 seconds on a working laptop.
Test before the next match — verify the motor shows in Brain Device Info and responds correctly.

⚠️

Do not try to repair a dead port during competition. The repair involves de-soldering the RS-485 chip inside the Brain — a precision soldering job that should only be attempted in a controlled environment with proper equipment, not in a competition pit with 20 minutes until your next match.

⚙ STEM Highlight Electrical Engineering: Electrostatic Discharge & Circuit Protection

ESD (Electrostatic Discharge) is a transient overvoltage event — a voltage spike of thousands of volts lasting microseconds. The V5 Brain’s smart ports use MOSFET circuits that are vulnerable to ESD because their gate oxide (a few nanometers thick) breaks down irreversibly at voltages above ~20V. Walking on carpet generates 10,000–35,000V static charge — touching a robot’s metal frame discharges this through the nearest conducting path, which may be a port’s gate oxide. The SigBots ESD board adds transient voltage suppression (TVS) diodes — components that clamp voltage spikes before they reach sensitive inputs.

🎤 Interview line: “ESD destroys V5 ports via dielectric breakdown — the gate oxide in the MOSFET input circuit is only nanometers thick and ruptures at voltages above its rating. Static discharge from a student walking on carpet can exceed 10,000V. TVS diodes clamp transient spikes, protecting the gate by providing a lower-resistance discharge path.”

🔬 Check for Understanding

You disconnect a smart cable from the Brain while the robot is powered on. This is a risk because:

The motor could spin uncontrollably

The Brain may reset due to power interruption

Disconnecting under power can generate a voltage spike (back-EMF or inductive kick) that exceeds the port’s ESD tolerance and permanently damages the port

The cable connector will be damaged mechanically
